Insulation — Hot & Cold
Thermal insulation and cladding for hot lines, cryogenic service and vessels.
At a glance
- Discipline
- thermal
- Executed to
- IS 14164
Scope of work
- Hot insulation for heat conservation and personnel protection
- Cold insulation with vapour barriers
- Aluminium and stainless cladding
- Insulation of vessels, tanks and equipment
- Removable covers for valves and flanges
Method & materials
On cold service the vapour barrier is the system. If moisture reaches the cold surface it condenses, the insulation wets out and stops insulating, and the line corrodes under it — so barrier continuity at every joint, support and termination matters more than thickness.
Cladding is lapped to shed water in the direction it will run, and sealed at penetrations rather than relying on the lap alone.
Standards
- IS 14164Industrial application of thermal insulation.
Work is executed to these codes. This is not a claim of certification against them.
Images · 2

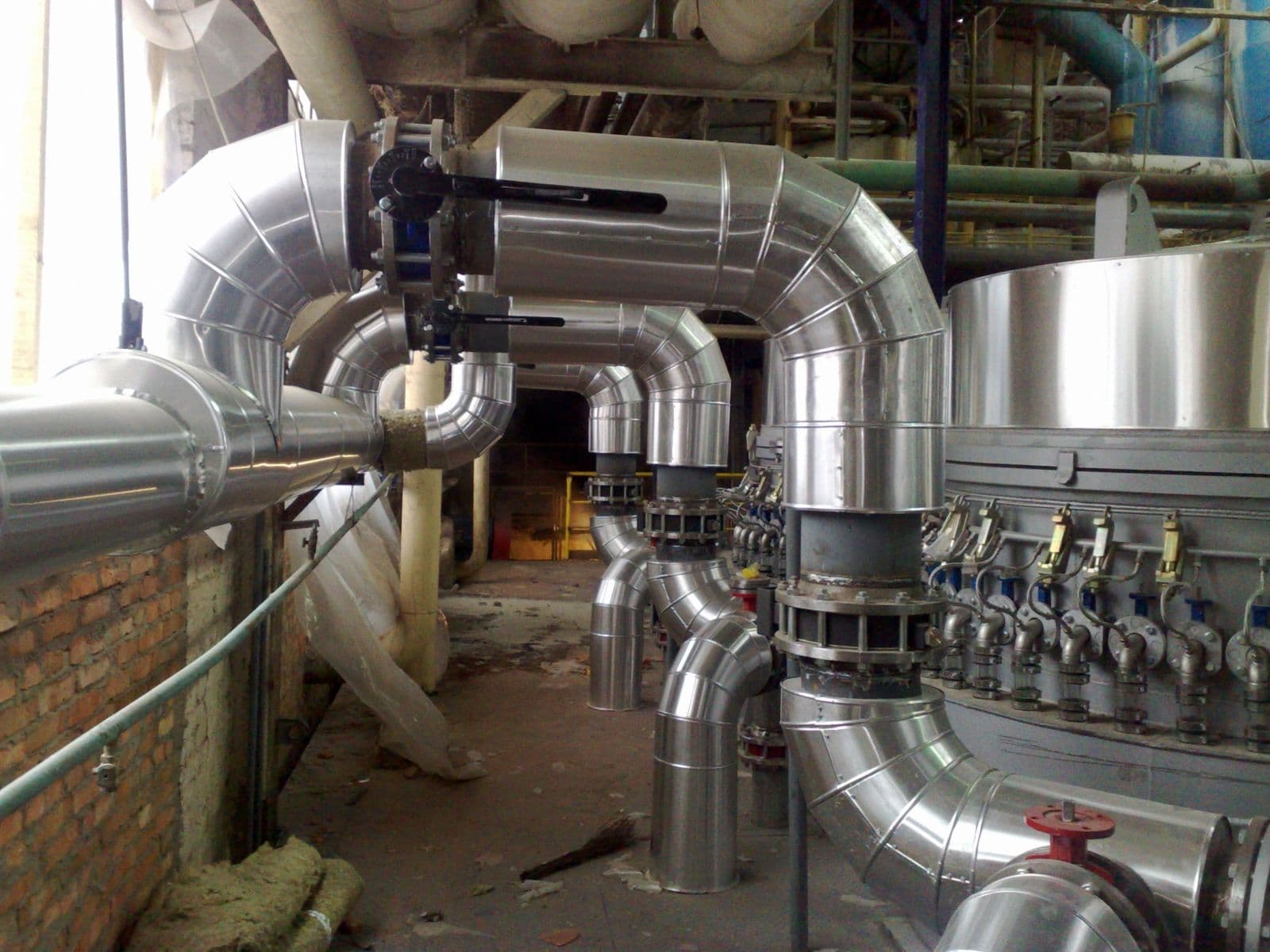

Metal-clad insulated pipework and valves

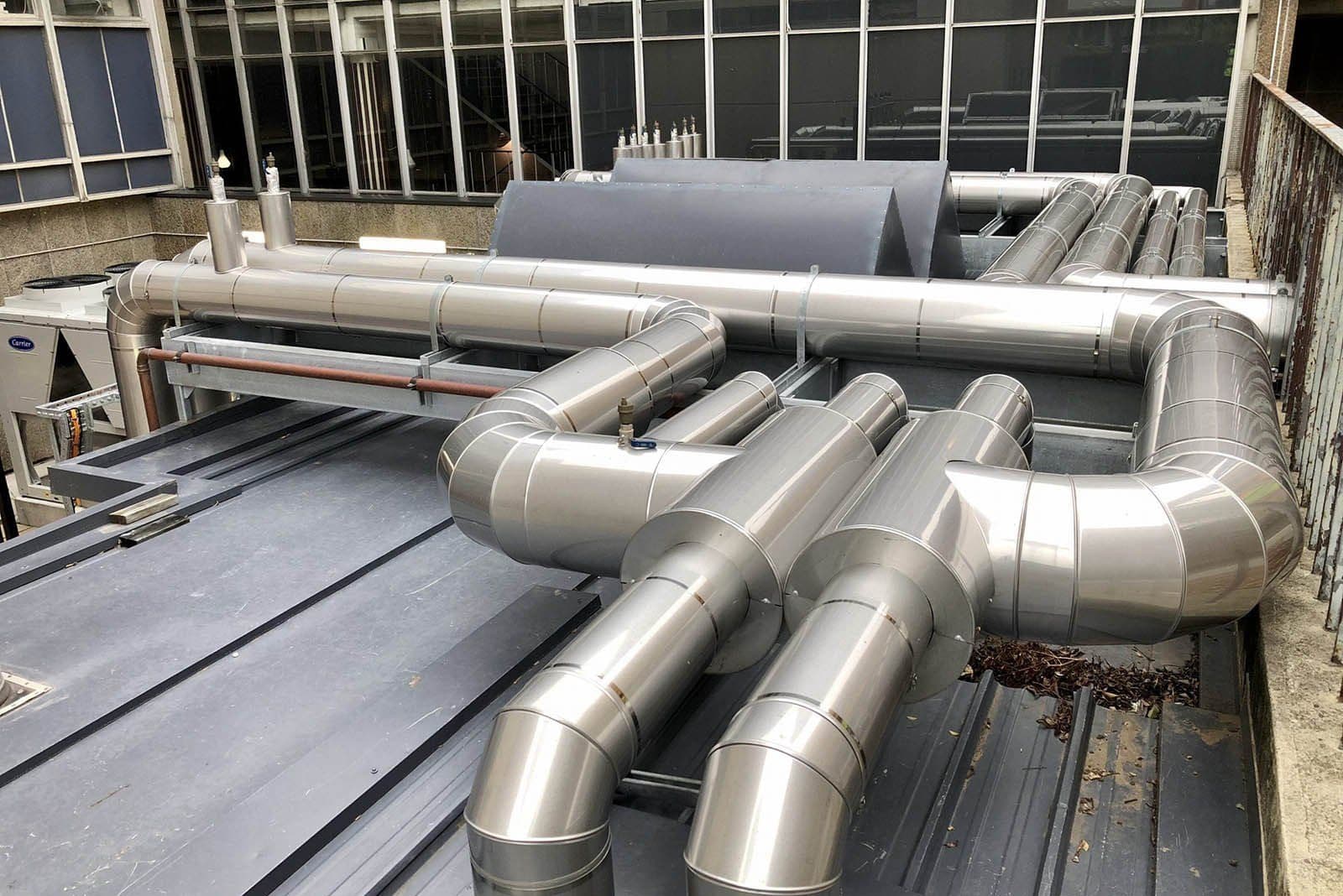

Clad insulation runs on a roof
