passive protection
Fire Proofing
Cementitious and intumescent protection to structural steel and supports.
At a glance
- Discipline
- passive protection
- Executed to
- UL 1709
Scope of work
- Cementitious fireproofing to structural steel
- Intumescent coating systems
- Protection of pipe racks and supports
- Vessel skirts and equipment supports
- Thickness verification and inspection
Method & materials
Fireproofing buys time for the structure, and the thickness is set by the fire rating and the section factor of the member — a heavy column and a light brace protected to the same rating need different thicknesses.
Applied thickness is measured and recorded across the member rather than sampled at the easy points, since the thin place is what fails first.
Standards
- UL 1709Rapid rise fire tests of protection materials for structural steel.
Work is executed to these codes. This is not a claim of certification against them.
Images · 2

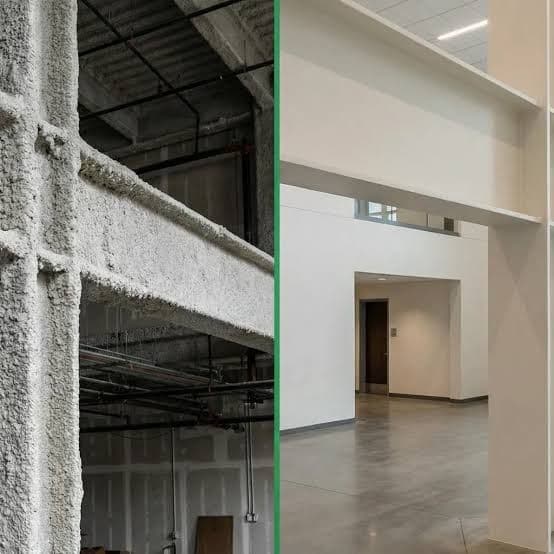

Cementitious fire protection sprayed on structural steel
Fire-protected steel beam
