Strainer
Named for its shape, and the most economical choice for removing large debris. Cast in 1" to 24" with threaded, socket weld or flanged end connections.
At a glance
- Size range
- 1" to 24"
- End connections
- Threaded, socket weld or flanged
- Pressure drop data
- 2" to 24"
Specification
| Size range | 1" to 24" |
|---|---|
| End connections | Threaded, socket weld or flanged |
| Service | High pressure and temperature duties, and high viscosity services, where a sturdy screen is required |
| Pressure drop data | Published for 2" to 24" |
| Screen | Open area | Opening |
|---|---|---|
| Perforated, IPA 120 | 58% | — |
| Perforated, IPA 118 | 51% | — |
| Perforated, IPA 113 | 40% | — |
| Perforated, IPA 106 | 23% | — |
| Perforated, IPA 102 | 23% | — |
| 20 mesh | 49% | 0.035" |
| 30 mesh | 45% | 0.022" |
| 40 mesh | 41% | 0.016" |
| 60 mesh | 38% | 0.010" |
| 80 mesh | 36% | 0.008" |
| 100 mesh | 30% | 0.006" |
Construction & operation
On filtration level: the specified level should be no finer than half the size of the particle to be removed. Too fine a specification raises the pressure drop through the strainer very rapidly and can damage the basket.
Where it is used
Part of these fire fighting solutions

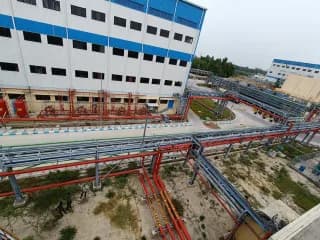

Fire Hydrant SystemPlant-wide ring main, hydrants, monitors and hose boxes, sized to the site.

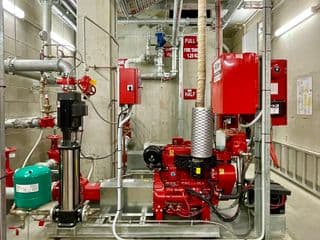

Fire Pump House and ReservoirPumps, drivers, suction reservoir and controls — the source everything else runs on.
Fire Water Spray SystemMedium and high velocity spray for vessels, transformers and process equipment.
Specified for these hazards

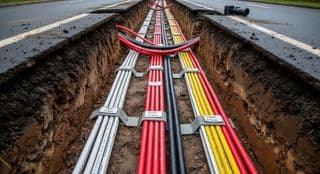

Cable Galleries / TrenchesLinear heat detection with water spray or clean agent.

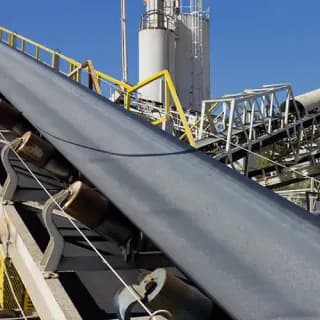

Conveyor BeltsLinear detection and deluge along the belt run.

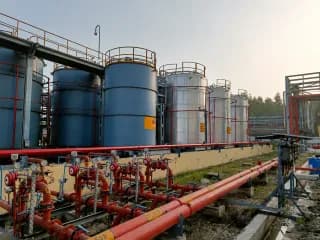

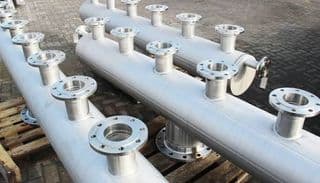

Pipeline ManifoldsSpray protection at valve and manifold congestion.

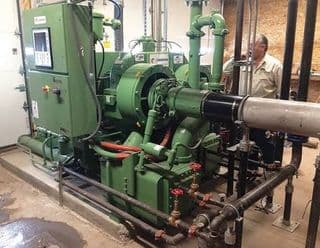

Pump & Compressor AreasSpray protection over rotating equipment and seal leakage points.

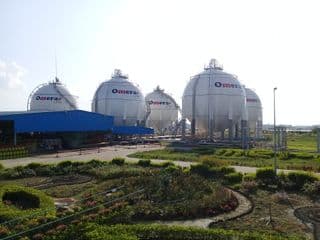

Sphere & BulletWater spray for cooling and exposure protection on pressurised storage.

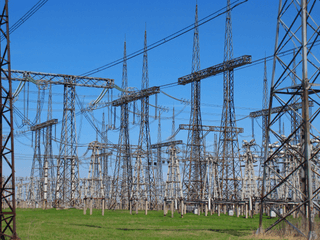

Transformers & SwitchyardsHigh velocity water spray, with drainage and separation designed in.

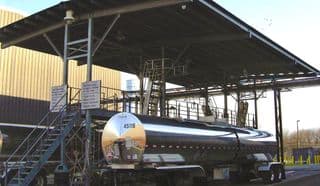

Truck & Rail GantryFoam and water spray over loading bays, with detection at the arms.
Downloads
- Product datasheetPDF ↓
Images · 2
Main view

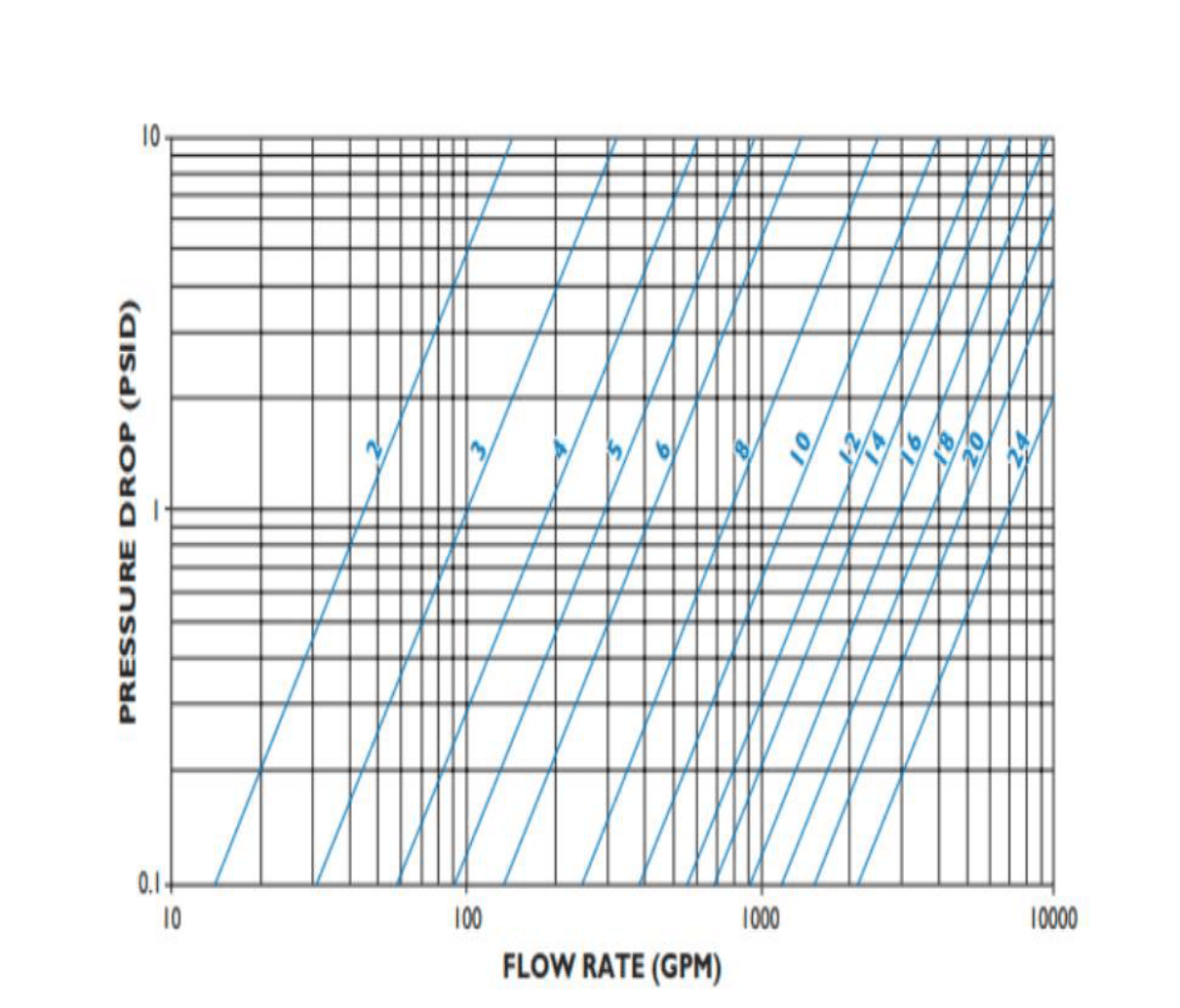

Pressure drop, liquids, 2" to 24"
