Manufactured in-house
Foam Pourer Floating Roof Tank
Foam pourer designed for floating roof tanks, delivering foam to the rim seal area for fire suppression.
At a glance
- Application
- Floating roof tanks
- Inlet size
- 50, 65 and 80 NB
- Working pressure
- 2.8 to 7 kg/cm²
- Maximum back pressure
- 1 psi
Specification
| Application | Floating roof tanks, and all types of foam concentrate |
|---|---|
| Inlet size | 50, 65 and 80 NB |
| Working pressure | 2.8 to 7 kg/cm² |
| Maximum back pressure | 1 psi |
| Foam expansion | 3 to 4% |
| Material | Carbon steel with anticorrosive coating, SS 304 or SS 316 |
| Flange | SORF, ASME B 16.5, 150 lbs, A105 / SS 304 / SS 316 |
Construction & operation
A foam pourer delivers expanded foam onto the rim seal area of a floating roof tank — the annular space between the tank shell and a foam dam on the roof. It is mounted on the shell near the top, fed by a foam maker or a foam solution line, and its deflector turns the foam down the inside of the shell so it settles into the seal area rather than onto the roof.
Maintenance
- Inspect the outlet and deflector for corrosion and blockage.
- Check the foam dam on the roof is intact — the pourer relies on it to hold the foam over the seal.
- Test at the intervals the governing code sets.
Where it is used
Part of these fire fighting solutions
Specified for these hazards
Aircraft HangarsHigh expansion foam and overhead systems to NFPA 409.
Fixed / Cone Roof TanksTop pourers and foam chambers discharging onto the liquid surface.
Floating Roof TanksRimseal fire and full-surface fire need different answers. Detection at the seal, foam at the roof.
Tank Farm Bund / DykeFoam makers on the bund wall for spill fire in the containment area.
Truck & Rail GantryFoam and water spray over loading bays, with detection at the arms.

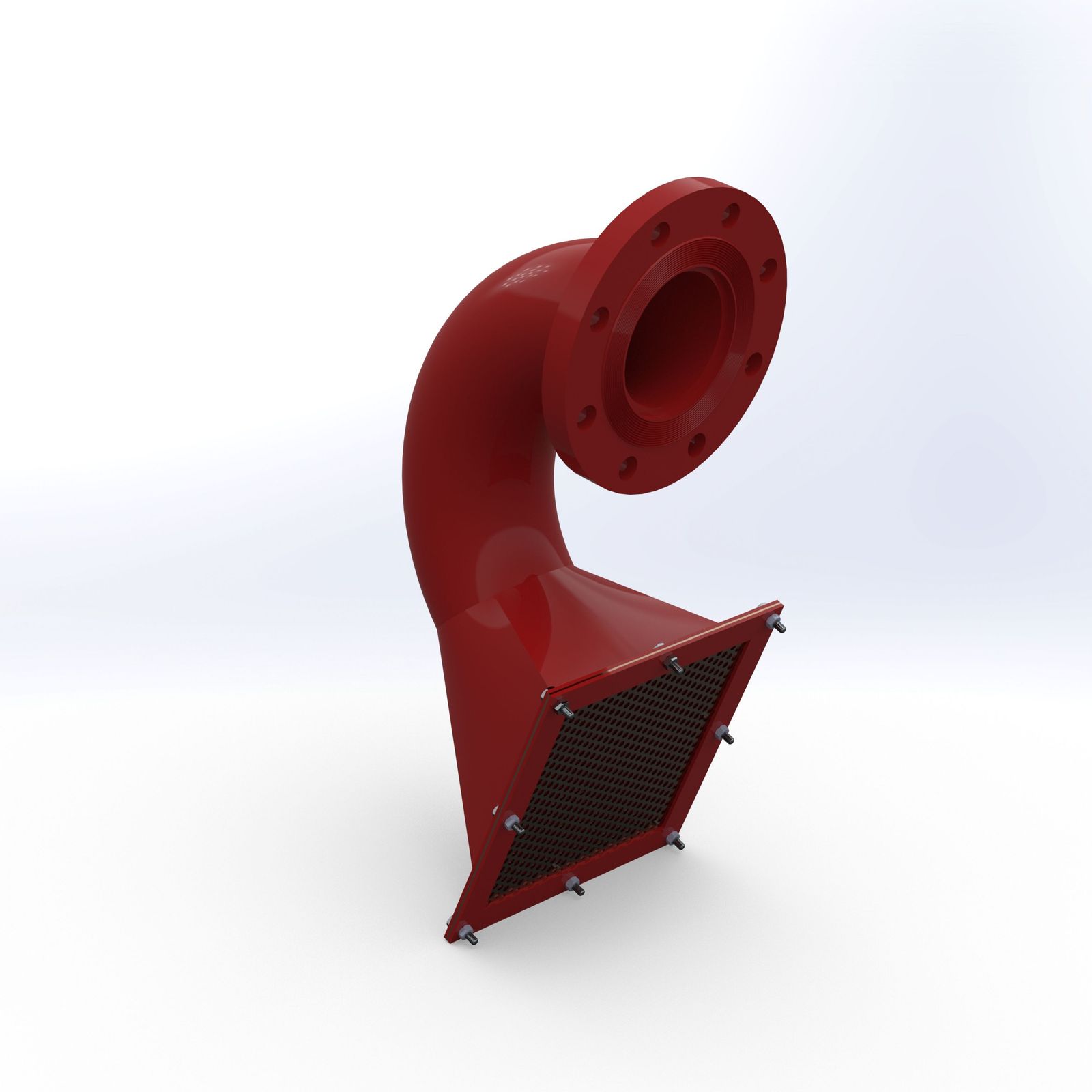

Main view
