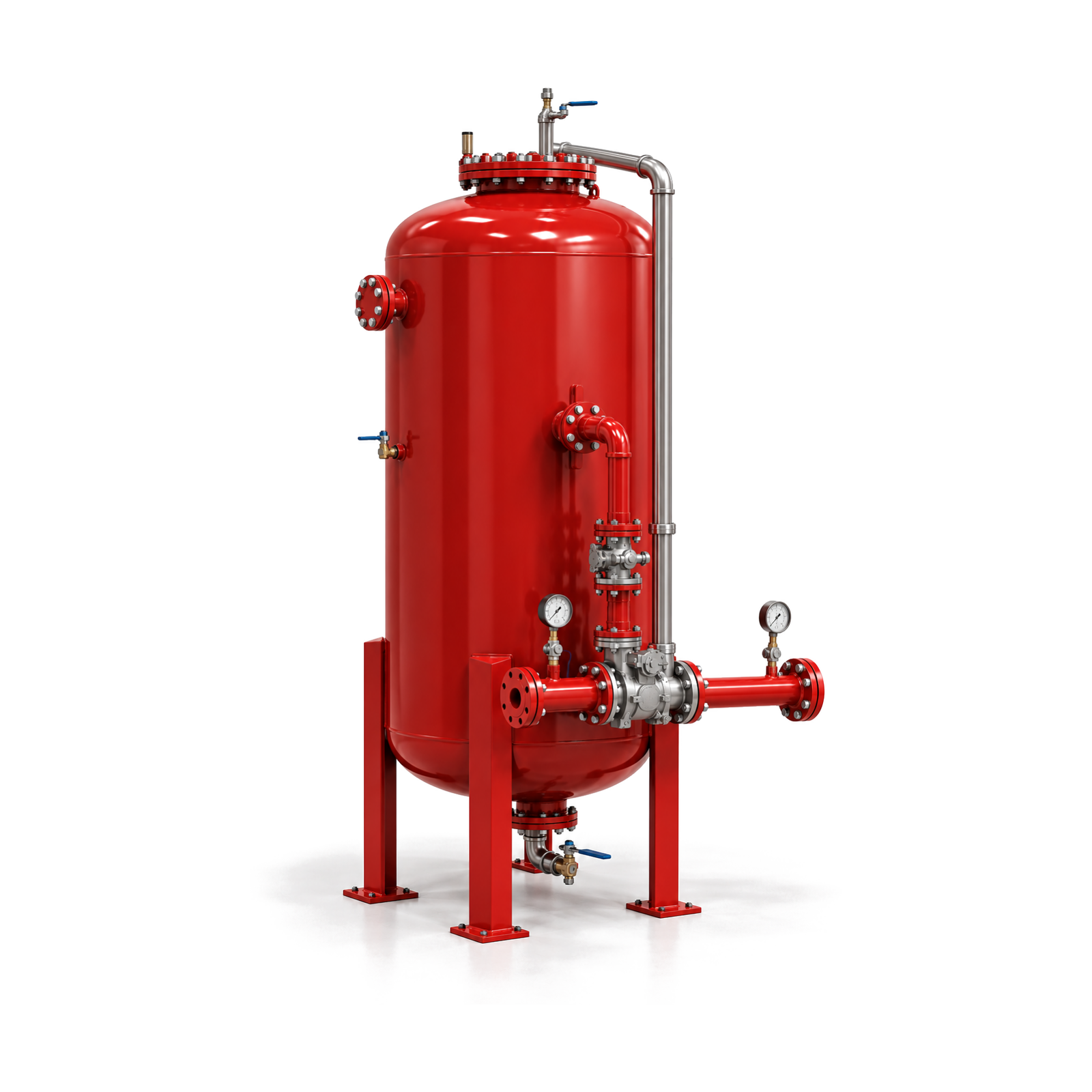

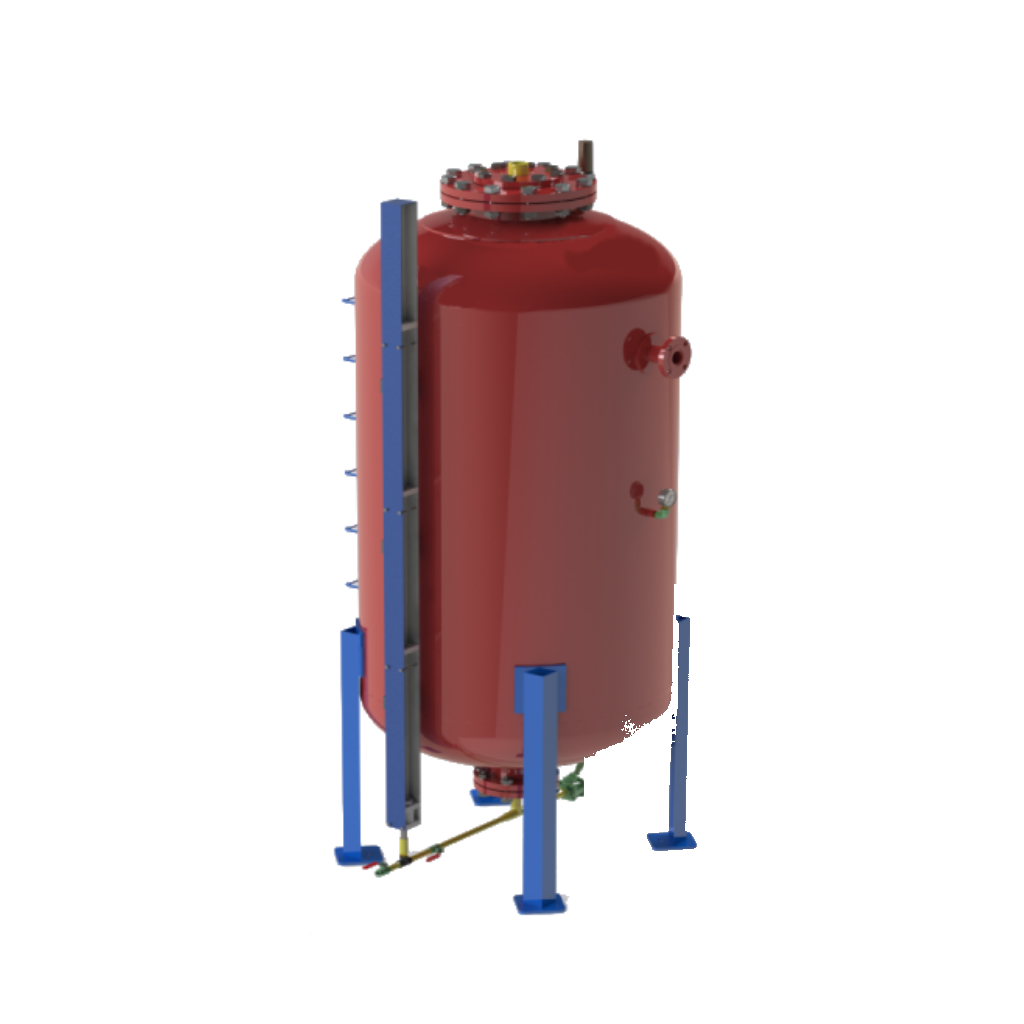

Foam Bladder Tank Vertical with Ratio Controller
Vertical pressurized bladder tank with ratio controller for balanced pressure foam proportioning systems.
Precision Inside Out
Elastomeric Bladder
Separates concentrate from system water
Balanced Pressure System
Ratio controller for accurate foam mix ratio
Vertical Configuration
Reduced footprint for compact plant areas
1% to 6% Mix Ratio
Compatible with all standard foam concentrates
IS 2825 Pressure Vessel
Certified steel shell for safety compliance
Top Fill / Drain Ports
Convenient concentrate loading and drainage
Compact Vertical Design
The vertical bladder tank configuration saves floor space while delivering precise balanced-pressure foam proportioning for industrial fire systems.
Designed for mission-critical reliability, the Foam Bladder Tank Vertical with Ratio Controller (Ref: DTL-2FAE59) incorporates advanced industrial engineering to ensure seamless integration into your safety infrastructure. Our focus remains on high-tolerance manufacturing and rigorous quality control, providing a solution that exceeds international standards for performance and durability.
Engineering Core
Built for the most demanding
industrial environments.
System Analysis Mode
Technical Consultation.
Safe Facilities.
Connect with our systems integration team for a baseline hydraulic audit of your facility.
* Technical audits are subject to regional facility accessibility.
Full Technical Specifications
Orientation
Vertical
Capacity Range
500L to 20,000L
Shell Material
Carbon Steel IS 2825
Bladder Material
Elastomeric (oil-resistant)
