Fabricated Basket Strainer
Top-removal screen in the form of a basket with a lifting handle, so everything the screen catches can be lifted out for disposal. For applications expecting large amounts of solid particulate and frequent clean-out.
At a glance
- Size range
- 2" to 24"
- Screen
- Top-removal basket with lifting handle
- Covers
- Bolted, hinged, clamped or quick-closing
Specification
| Size range | 2" to 24" |
|---|---|
| Cover options | Bolted, hinged, clamped or quick-closing |
| Lifting | Davit or other lifting device, for large heavy covers |
| Service | High pressure and temperature duties, and high viscosity services, where a sturdy screen is required |
| Rating | ASME Class 150 to 2500 |
| Connection type | Flanged, welded or grooved |
| Flange type | SORF or WNRF |
| Body material | IS 2062, SA 516 Gr. 70, A 106 or stainless steel |
| Element | SS 316 or duplex steel |
| Element design | UL 331 |
| Flange material | IS 2062, A 105 or stainless steel |
| Bolts and nuts | Carbon steel or stainless steel |
| Screen | Open area | Opening |
|---|---|---|
| Perforated, IPA 120 | 58% | — |
| Perforated, IPA 118 | 51% | — |
| Perforated, IPA 113 | 40% | — |
| Perforated, IPA 106 | 23% | — |
| Perforated, IPA 102 | 23% | — |
| 20 mesh | 49% | 0.035" |
| 30 mesh | 45% | 0.022" |
| 40 mesh | 41% | 0.016" |
| 60 mesh | 38% | 0.010" |
| 80 mesh | 36% | 0.008" |
| 100 mesh | 30% | 0.006" |
Construction & operation
The screen is a basket with a lifting handle, removed from the top, so everything it captures can be lifted out for disposal. For applications with a large load of solids and frequent clean-out.
Covers can be bolted, hinged, clamped or quick-closing, with a davit or other lifting device to make removing a large, heavy cover safe.
Suited to services that need an extremely sturdy screen: high pressure and temperature duties, and high viscosity fluids.
Filtration level. When choosing a perforation or a mesh-and-perforation combination, avoid overstraining: as a rule the specified filtration should be no finer than half the size of the particle to be removed. Too fine a filtration raises the pressure drop very rapidly and can damage the basket.
Where it is used
Part of these fire fighting solutions
Fire Hydrant SystemPlant-wide ring main, hydrants, monitors and hose boxes, sized to the site.
Fire Pump House and ReservoirPumps, drivers, suction reservoir and controls — the source everything else runs on.
Fire Water Spray SystemMedium and high velocity spray for vessels, transformers and process equipment.
Specified for these hazards
Cable Galleries / TrenchesLinear heat detection with water spray or clean agent.
Conveyor BeltsLinear detection and deluge along the belt run.
Pipeline ManifoldsSpray protection at valve and manifold congestion.
Pump & Compressor AreasSpray protection over rotating equipment and seal leakage points.
Sphere & BulletWater spray for cooling and exposure protection on pressurised storage.
Transformers & SwitchyardsHigh velocity water spray, with drainage and separation designed in.
Truck & Rail GantryFoam and water spray over loading bays, with detection at the arms.
Downloads
- Product datasheetPDF ↓
Images · 3

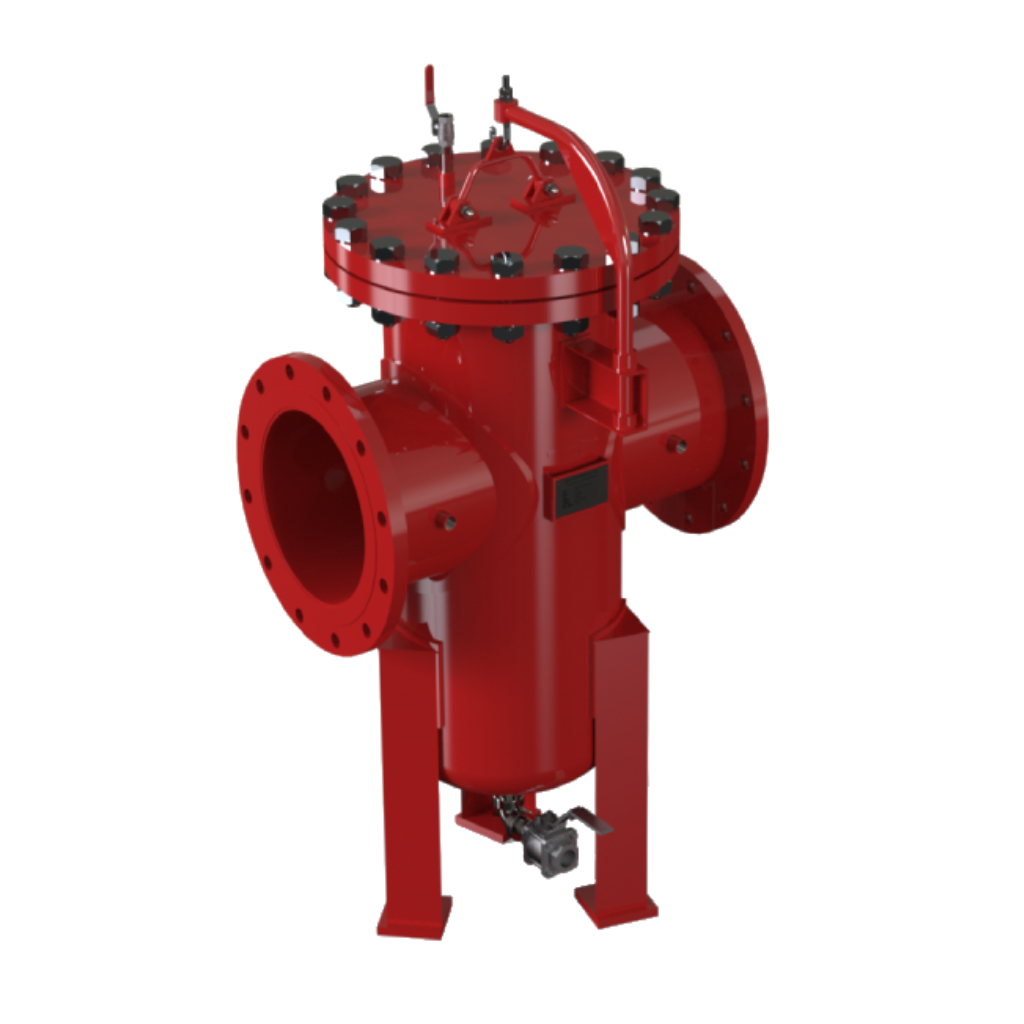

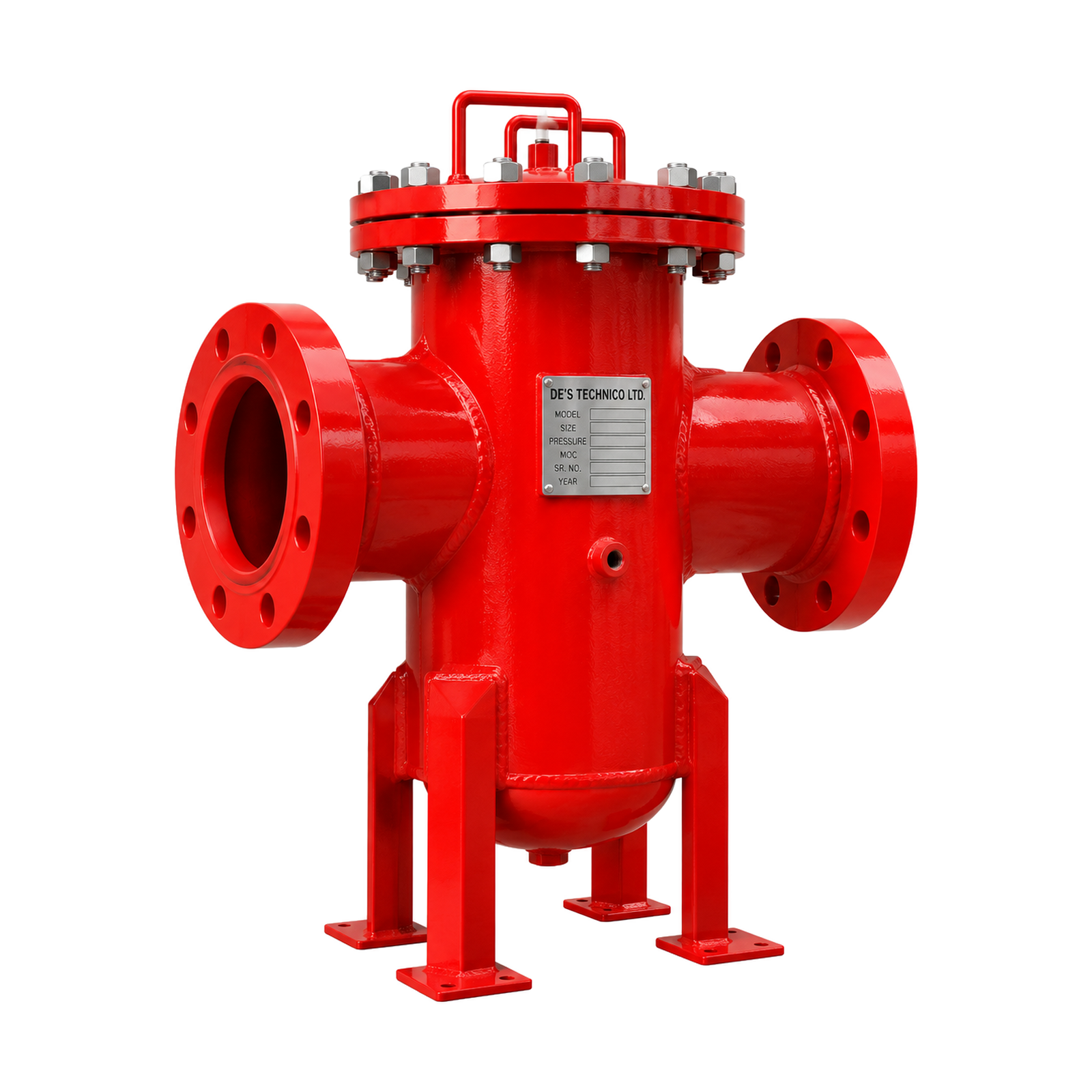

Fabricated basket strainer with De’s Technico nameplate
Main view

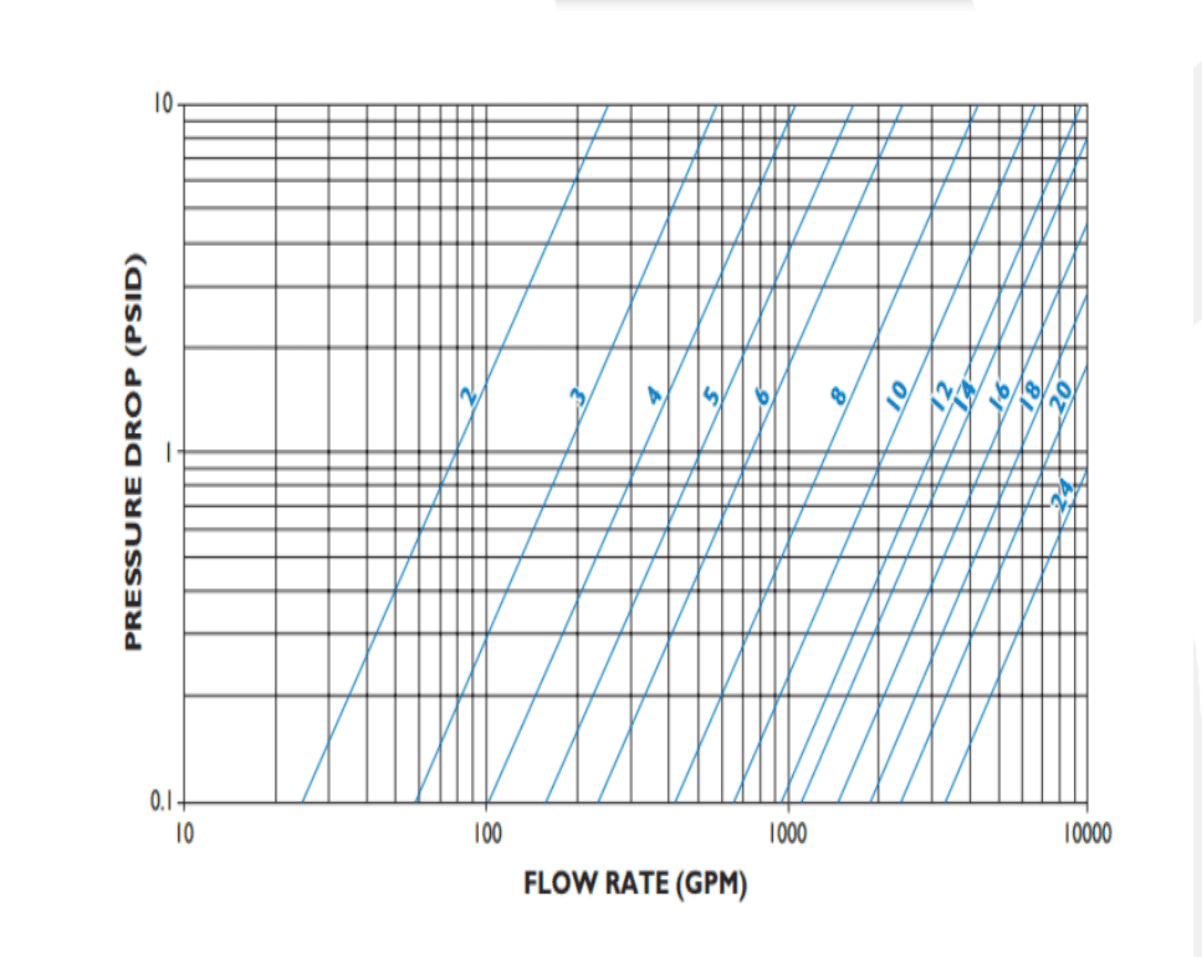

Pressure drop, liquids, 2" to 24"
