Manufactured in-house

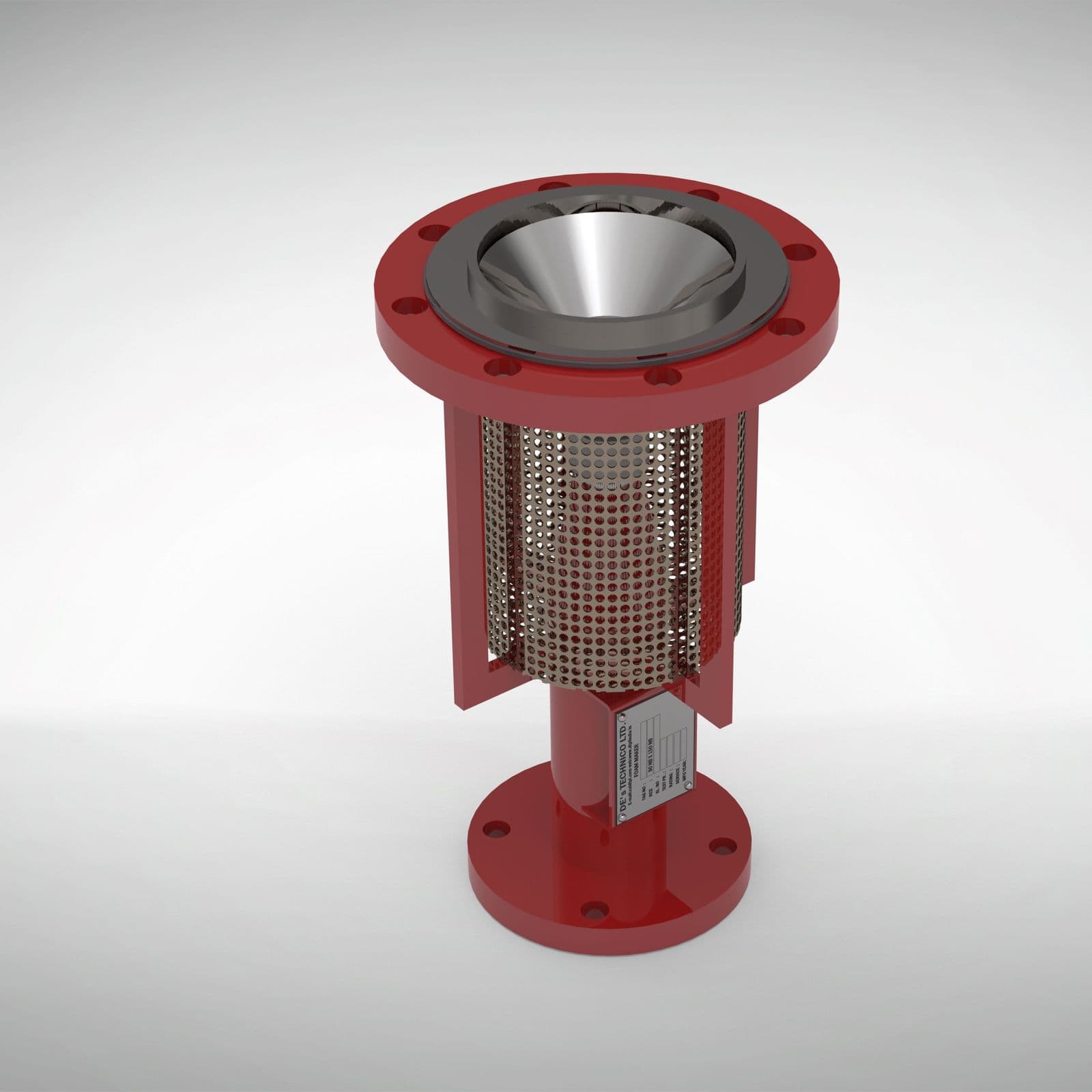

Foam Maker (For Floating Roof Tank)
Fixed foam maker for expanding foam solution with air induction for tank surface fire protection systems.
At a glance
- Application
- Floating roof tanks
- Inlet size
- 50, 65 and 80 NB
- Working pressure
- 2.8 to 7 kg/cm²
- Material
- Coated carbon steel, SS 304 or SS 316
Specification
| Application | Floating roof tanks, and all types of foam concentrate |
|---|---|
| Inlet size | 50, 65 and 80 NB |
| Working pressure | 2.8 to 7 kg/cm² |
| Maximum back pressure | 1 psi |
| Foam expansion | 3 to 4% |
| Material | Carbon steel with anticorrosive coating, SS 304 or SS 316 |
| Flange | SORF, ASME B 16.5, 150 lbs, A105 / SS 304 / SS 316 |
Construction & operation
A foam maker turns foam solution into expanded foam by drawing in air. Solution under pressure passes through an orifice and sprays into the body; the jet draws air in through the inlet openings, and solution and air mix into foam that is carried on to the discharge outlet.
On a floating roof tank it is mounted on the shell near the top and feeds foam down onto the rim seal area — the annular space between the shell and a foam dam on the floating roof — where rim seal fires start.
Maintenance
- Keep the air inlet screen clear of debris, insects and nests; a blocked inlet produces poor foam.
- Check the orifice is clear and undamaged, and flush the solution line after any discharge.
- Test at the intervals the governing code sets.
Where it is used
Part of these fire fighting solutions
Specified for these hazards

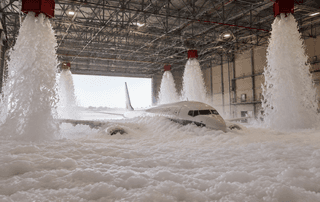

Aircraft HangarsHigh expansion foam and overhead systems to NFPA 409.
Fixed / Cone Roof TanksTop pourers and foam chambers discharging onto the liquid surface.
Floating Roof TanksRimseal fire and full-surface fire need different answers. Detection at the seal, foam at the roof.
Tank Farm Bund / DykeFoam makers on the bund wall for spill fire in the containment area.
Truck & Rail GantryFoam and water spray over loading bays, with detection at the arms.
Images · 2

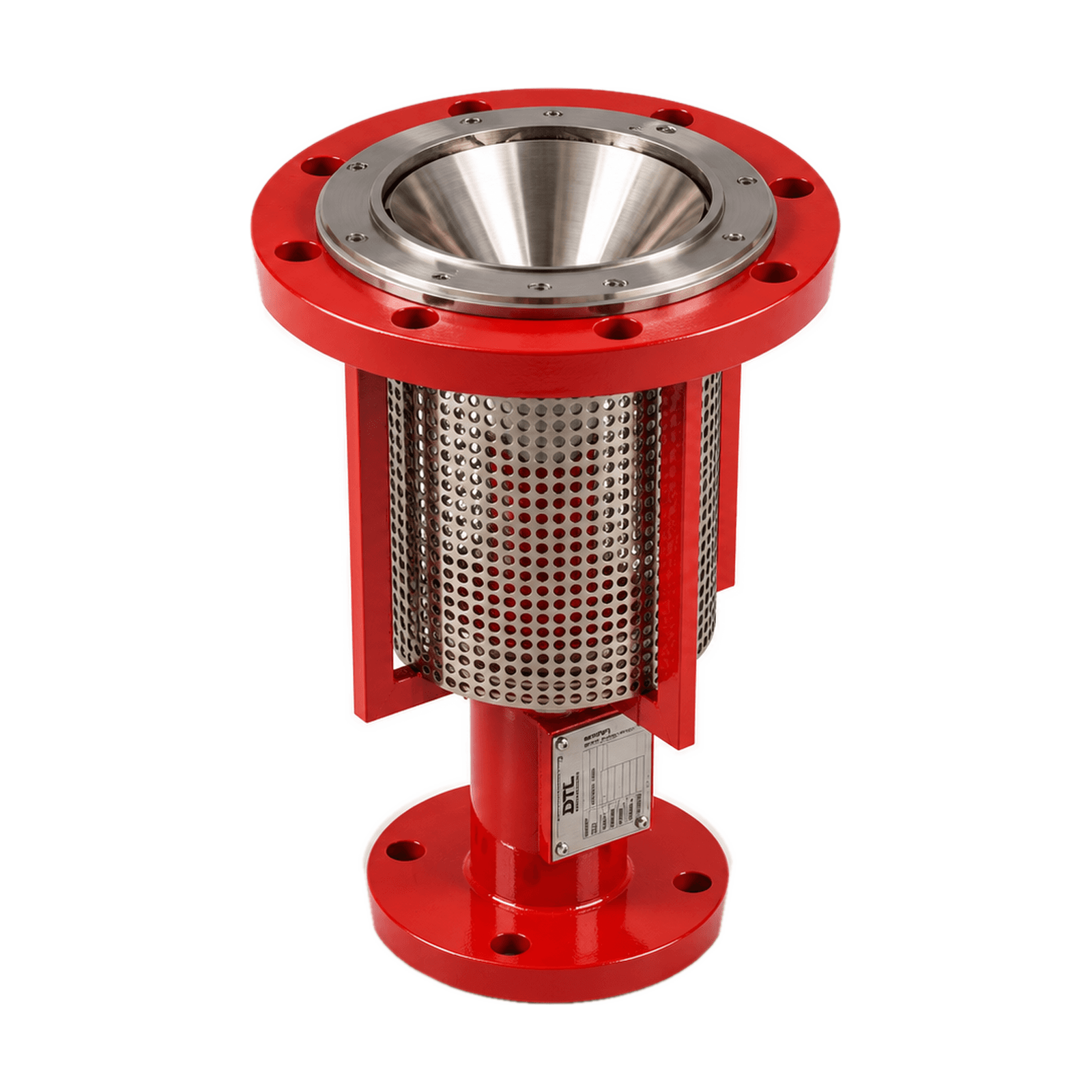

Foam maker with stainless steel air screen

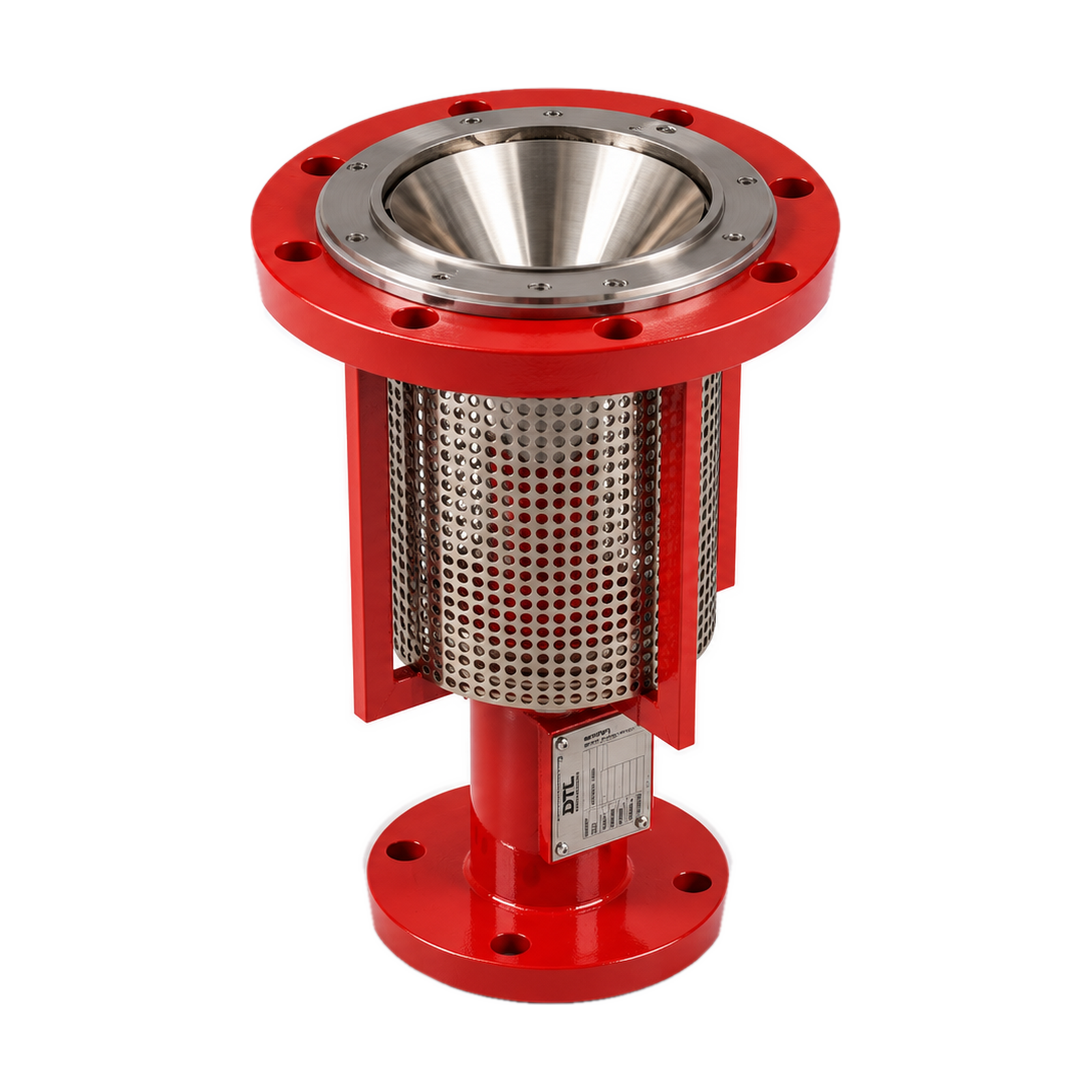

Main view
