Deluge Valve Skid Cabinet
Pre-fabricated factory-tested deluge valve skid cabinet for rapid LSTK field integration.
At a glance
- Valves
- Three butterfly valves, with bypass
- Instrumentation
- Pressure switch, gauge, SOV
- Enclosure
- 14 SWG, red powder coated
- Assembly
- Pre-assembled, factory tested
Specification
| Valves | Three high-performance butterfly valves with a bypass system |
|---|---|
| Instrumentation | Pressure switch, pressure gauge, SOV, junction box and internal wiring |
| Assembly | Pre-assembled and factory tested |
| Enclosure | 14 SWG sheet, red powder coated, with all gauges externally visible |
Construction & operation
A deluge valve skid cabinet brings the deluge valve, its trim and its isolation valves together in one enclosure, pre-piped and tested before it leaves the works. On site it needs connecting to the water supply, the system pipework, the detection line and the fire alarm panel.
Butterfly valves isolate the deluge valve for maintenance, and a bypass keeps water available to the system while the valve is out of service. The pressure switch reports the valve tripping to the panel; gauges are visible from outside the cabinet so pressures can be read without opening it.
Maintenance
- Keep the cabinet dry and the gauges readable; check the door seals where it stands outdoors.
- Trip-test the deluge valve at the intervals the governing code sets, with the downstream isolation valve closed where the design allows.
- Check the bypass and isolation valves are left in their normal positions after every test.
Approvals
UL 260 — Deluge Valves
File EX26880Special system water control valves, deluge type. PD Dry Pilot and PD Wet Pilot in the 4 and 6 inch nominal sizes, with grooved ends, for horizontal and vertical position, rated working pressure not to exceed 250 psig.
View certificate
Where it is used
Part of these fire fighting solutions
Specified for these hazards
Cable Galleries / TrenchesLinear heat detection with water spray or clean agent.
Conveyor BeltsLinear detection and deluge along the belt run.
Pipeline ManifoldsSpray protection at valve and manifold congestion.
Pump & Compressor AreasSpray protection over rotating equipment and seal leakage points.
Sphere & BulletWater spray for cooling and exposure protection on pressurised storage.
Transformers & SwitchyardsHigh velocity water spray, with drainage and separation designed in.
Truck & Rail GantryFoam and water spray over loading bays, with detection at the arms.

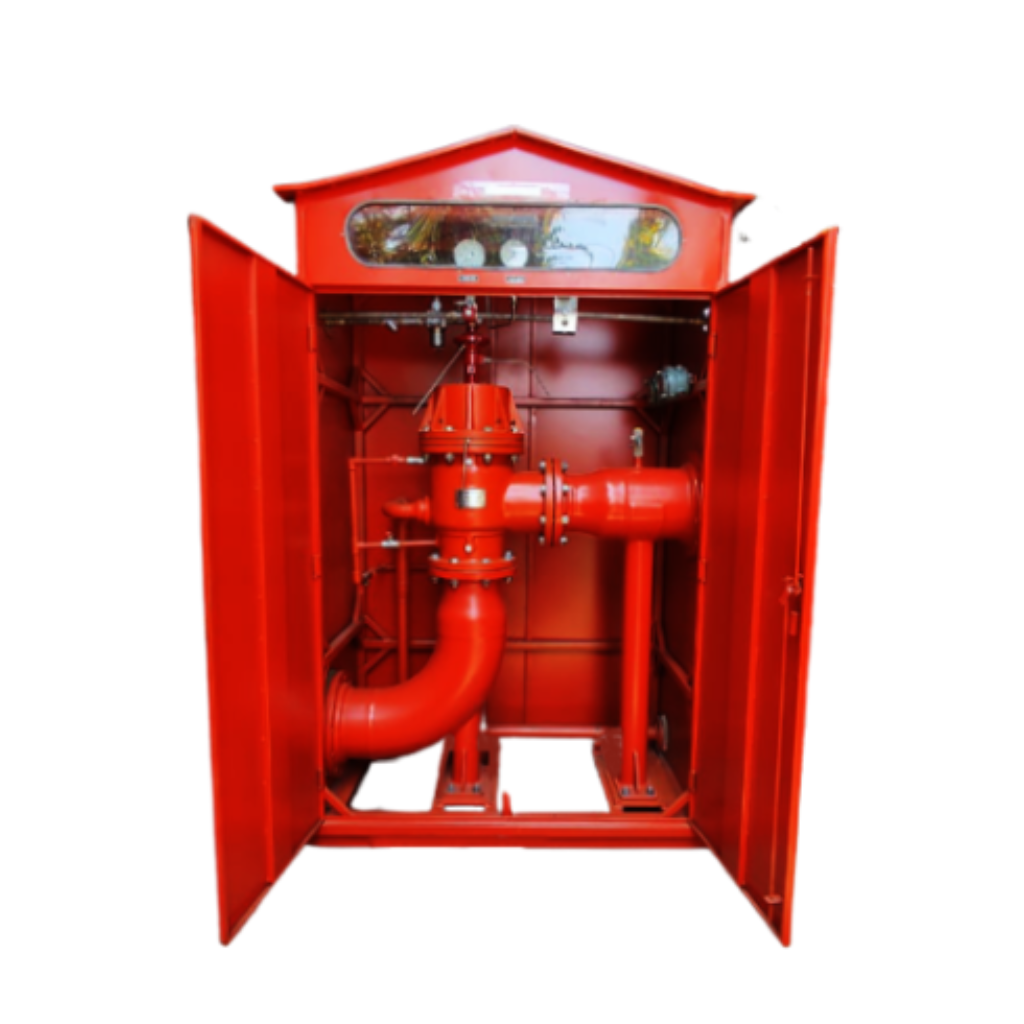

Main view
