Tyco make

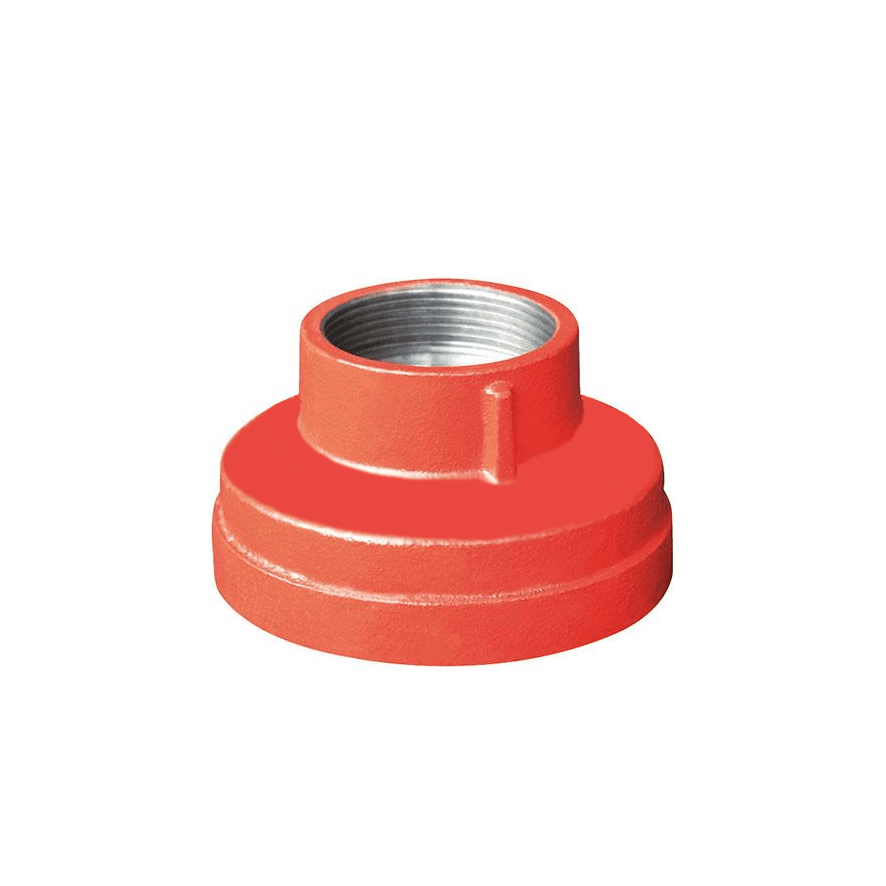

Threaded Concentric Reducer
Threaded concentric reducer for inline pipe size reduction in fire protection branch and sub-main lines.
Tyco make, supplied by De’s Technico. UL Listed under the Tyco Fire Products listing. FM Approved under the Tyco Fire Products approval.
At a glance
- Make
- Tyco
- Material
- Ductile iron, ASTM A536
- Type
- Concentric
- Size range
- 15 × 10 to 100 × 80 mm
- Ends
- NPT or BSP threaded
Specification
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Type | Concentric |
| Thread Standard | NPT / BSP |
| Size Range | 15mm x 10mm to 100mm x 80mm |
Construction & operation
A threaded concentric reducer joins two threaded pipes of different sizes on a common centre line — typically on branch lines and sub-mains.
Installation
- Check that the male threads are clean and undamaged, and match the fitting’s thread standard (NPT or BSP — the two do not seal together).
- Apply PTFE tape or a thread sealant suited to the service, to the male thread only.
- Tighten with the right size of wrench on the fitting, not on the adjoining pipe, and stop at the make-up the thread needs — over-tightening splits fittings.
Approvals
UL Listed — Tyco (Grinnell G-Fire) Grooved Fittings
Tyco Fire Products listing · data sheet TFP1815Grooved elbows, tees, crosses and reducers. UL and ULC Listed (Tyco data sheet TFP1815).
FM Approved — Tyco (Grinnell G-Fire) Grooved Fittings
Tyco Fire Products approval · data sheet TFP1815Tyco (Grinnell G-Fire) Grooved Fittings. FM Approved (Tyco data sheet TFP1815).
