Tyco make

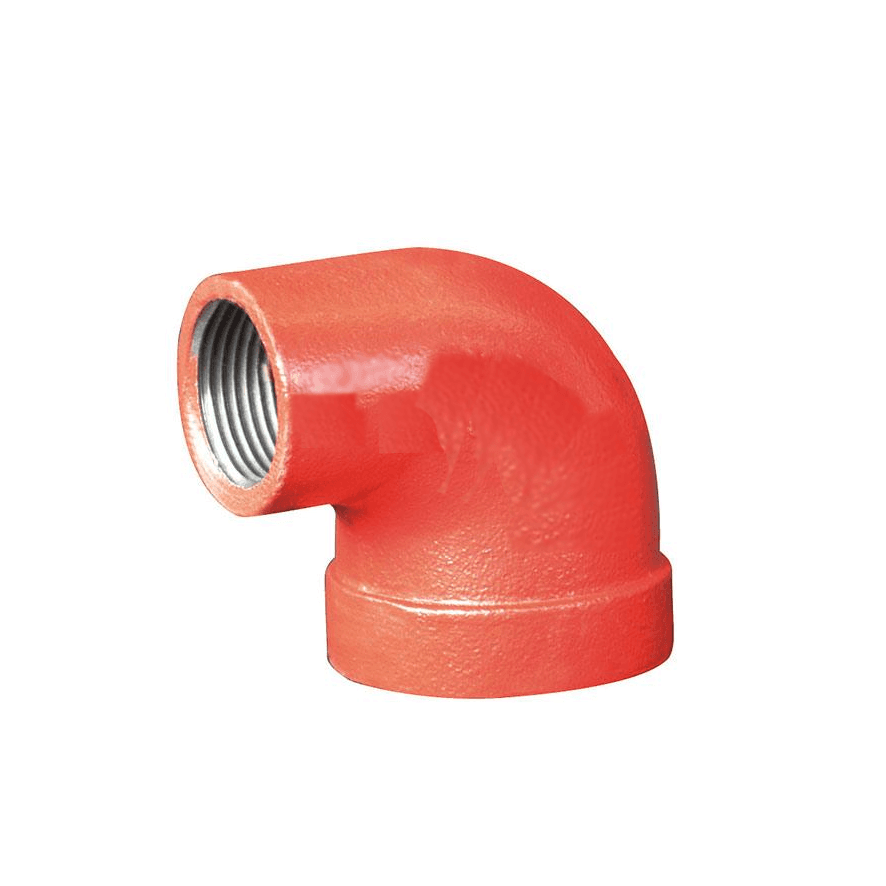

Thread 90 Degree Reducing Elbow
Threaded 90-degree reducing elbow for direction change with simultaneous pipe size reduction in fire systems.
Tyco make, supplied by De’s Technico. UL Listed under the Tyco Fire Products listing. FM Approved under the Tyco Fire Products approval.
At a glance
- Make
- Tyco
- Material
- Ductile iron, ASTM A536
- Type
- 90° reducing elbow
- Size range
- 15 × 10 to 100 × 80 mm
- Ends
- NPT or BSP threaded
Specification
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Angle | 90 Degrees |
| Thread Standard | NPT / BSP |
| Size Range | 15mm x 10mm to 100mm x 80mm |
Construction & operation
A threaded 90° reducing elbow turns a threaded line through a right angle and reduces its size in the same fitting, saving a separate reducer.
Installation
- Check that the male threads are clean and undamaged, and match the fitting’s thread standard (NPT or BSP — the two do not seal together).
- Apply PTFE tape or a thread sealant suited to the service, to the male thread only.
- Tighten with the right size of wrench on the fitting, not on the adjoining pipe, and stop at the make-up the thread needs — over-tightening splits fittings.
Approvals
UL Listed — Tyco Series 800 Threaded Fittings
Tyco Fire Products listing · data sheet TFP1710Series 800 threaded fittings. UL Listed (Tyco data sheet TFP1710).
FM Approved — Tyco Series 800 Threaded Fittings
Tyco Fire Products approval · data sheet TFP1710Tyco Series 800 Threaded Fittings. FM Approved (Tyco data sheet TFP1710).
