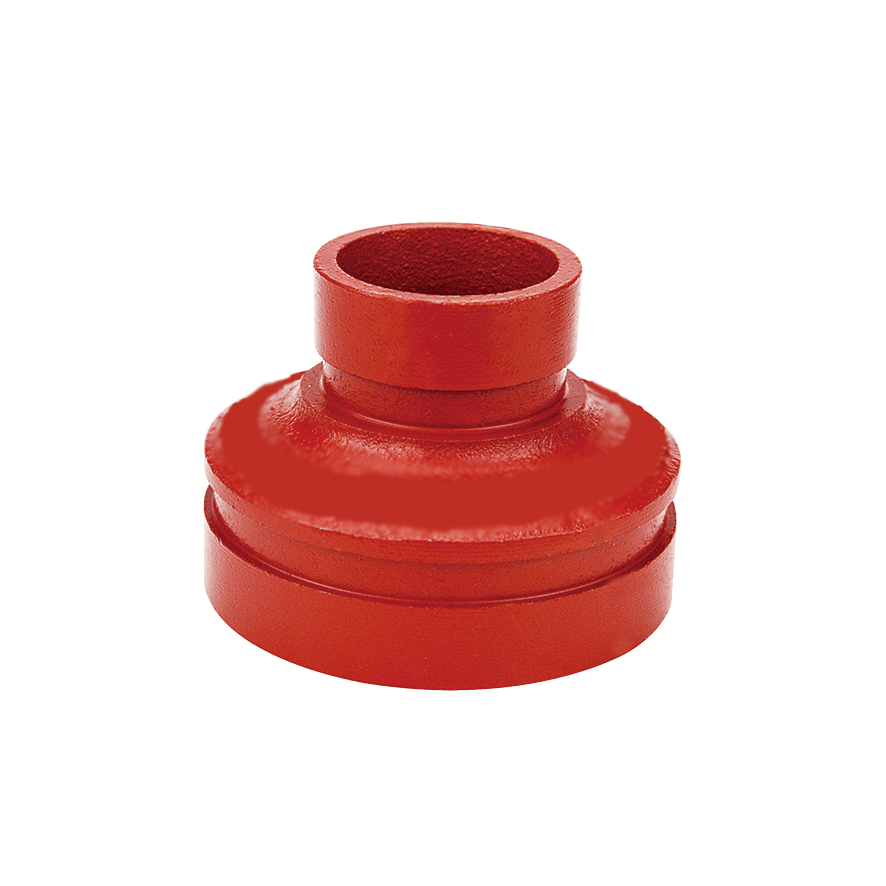

Reducer Grooved
Concentric grooved reducer for pipe size transitions in fire protection and industrial water supply systems.
Tyco make, supplied by De’s Technico. UL Listed under the Tyco Fire Products listing. FM Approved under the Tyco Fire Products approval.
At a glance
- Make
- Tyco
- Material
- Ductile iron, ASTM A536
- Type
- Concentric reducer
- Size range
- 50 × 40 to 300 × 200 mm
- Ends
- Grooved, both
Specification
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Type | Concentric |
| Size Range | 50mm x 40mm to 300mm x 200mm |
| End Connection | Grooved both ends |
Construction & operation
A grooved concentric reducer joins two grooved pipes of different sizes on a common centre line.
How a grooved joint works
Each end of the fitting carries a groove. It is joined to grooved pipe or another fitting with a grooved coupling: two housing segments bolted around a gasket, with keys on the housings that engage the grooves. Line pressure presses the gasket against the pipe, so the seal tightens as pressure rises.
Joints are made without welding or threading on site, and a section can be taken apart for maintenance and put back without cutting.
Installation
- Check that pipe ends and grooves are clean, undamaged and to the coupling maker’s groove dimensions.
- Lubricate the gasket with a lubricant compatible with the gasket material, and seat it over both ends.
- Fit the housings with the keys in the grooves, and tighten the nuts evenly and alternately to the coupling maker’s instructions.
- Support the pipework so the fitting carries no load it was not designed for.
Approvals
UL Listed — Tyco (Grinnell G-Fire) Grooved Fittings
Tyco Fire Products listing · data sheet TFP1815Grooved elbows, tees, crosses and reducers. UL and ULC Listed (Tyco data sheet TFP1815).
FM Approved — Tyco (Grinnell G-Fire) Grooved Fittings
Tyco Fire Products approval · data sheet TFP1815Tyco (Grinnell G-Fire) Grooved Fittings. FM Approved (Tyco data sheet TFP1815).
