Outlet Threaded
Grooved mechanical tee with threaded branch outlet for sprinkler and instrument take-off connections.
Tyco make, supplied by De’s Technico. UL Listed under the Tyco Fire Products listing. FM Approved under the Tyco Fire Products approval.
At a glance
- Make
- Tyco
- Material
- Ductile iron, ASTM A536
- Type
- Mechanical tee outlet
- Size range
- 25 to 200 mm
- Ends
- Grooved run, threaded branch
Specification
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Branch Outlet | NPT / BSP threaded |
| Main Run | Grooved both ends |
| Size Range | 25mm to 200mm |
Construction & operation

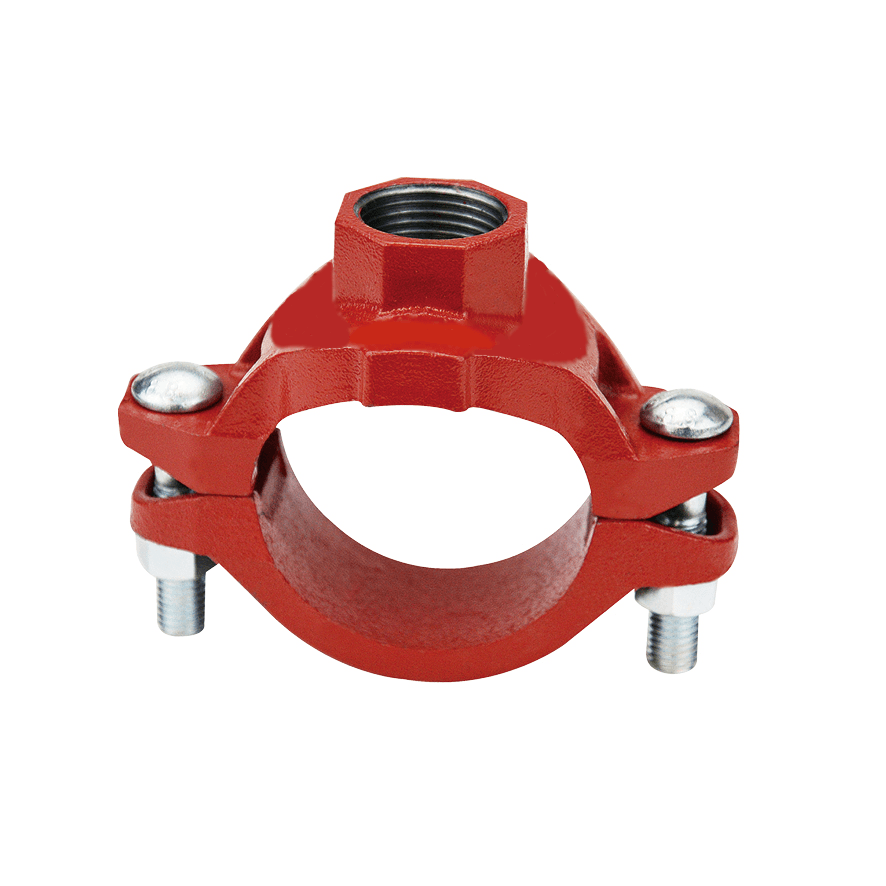

A mechanical tee with a threaded outlet takes a branch off a pipe run without cutting the run apart. The housing clamps round the pipe over a hole cut in it; a locating collar on the outlet seats in the hole and a gasket seals round it.
Used for sprinkler drops, gauge and instrument take-offs, and small branches off a main.
Installation
- Cut the hole to the diameter the maker specifies, and remove all burrs and the cut coupon from the pipe.
- Seat the locating collar in the hole before tightening, so the outlet sits square on the pipe.
- Tighten the housing bolts evenly to the maker’s instructions.
Approvals
UL Listed — Tyco Figure 730 Mechanical Tee and Cross
Tyco Fire Products listing · data sheet TFP1860Figure 730 mechanical tee and cross, threaded or grooved outlet. UL and ULC Listed (Tyco data sheet TFP1860).
FM Approved — Tyco Figure 730 Mechanical Tee and Cross
Tyco Fire Products approval · data sheet TFP1860Tyco Figure 730 Mechanical Tee and Cross. FM Approved (Tyco data sheet TFP1860).
