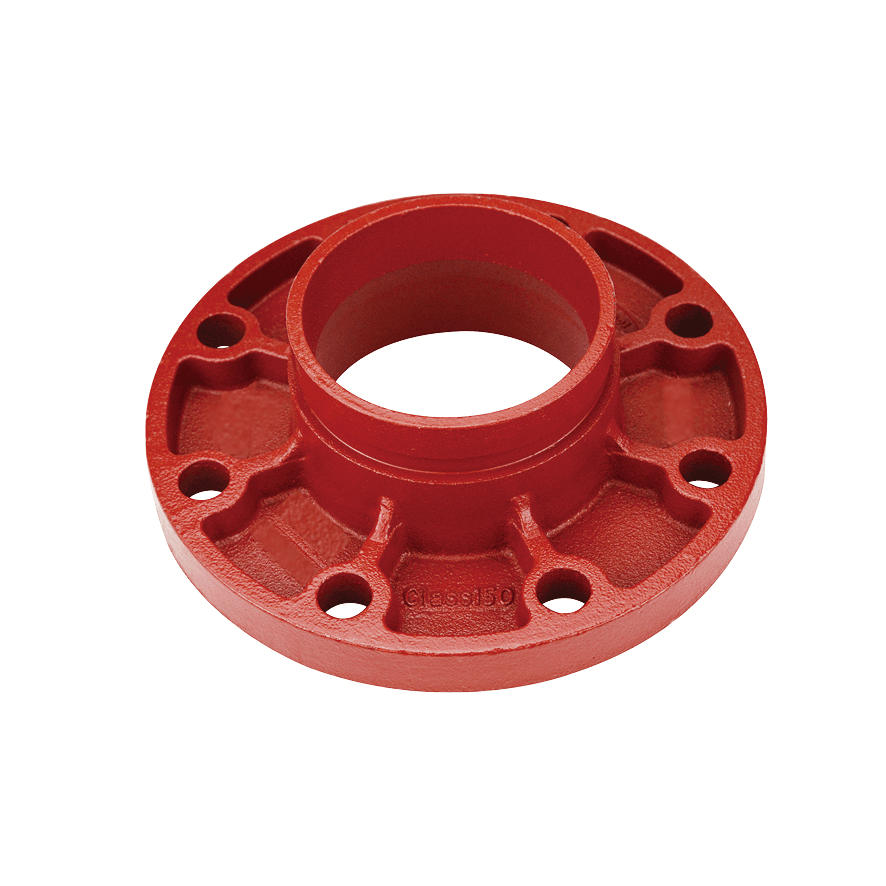

Flange Adaptor Class 150
Grooved-to-flange adaptor for connecting grooved piping systems to ANSI Class 150 flanged equipment.
Tyco make, supplied by De’s Technico. UL Listed under the Tyco Fire Products listing. FM Approved under the Tyco Fire Products approval.
At a glance
- Make
- Tyco
- Material
- Ductile iron, ASTM A536
- Type
- Flange adaptor
- Size range
- 25 to 300 mm
- Ends
- Grooved × ANSI B16.5 Class 150
Specification
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Flange Standard | ANSI B16.5 Class 150 |
| Size Range | 25mm to 300mm |
| Grooved End | One end grooved |
Construction & operation
A grooved flange adaptor connects grooved pipe to flanged equipment — a pump, a valve or a flanged spool — with bolt holes drilled to match an ANSI Class 150 flange.
The adaptor clamps into the groove and seals on a gasket against the mating flange face, so the joint is made without welding a flange onto the pipe.
Installation
- The mating flange needs a flat, sound sealing face; check it for damage and raised serrations that could cut the gasket.
- Where the mating part is a wafer or lug valve, or a rubber-faced component, check with the valve maker whether a spacer ring is needed.
- Tighten the flange bolts evenly and alternately to the maker’s instructions.
Approvals
UL Listed — Tyco Figure 71 Flange Adapter
Tyco Fire Products listing · data sheet TFP1880Figure 71 grooved flange adapter for Class 125/150 flanges. UL and ULC Listed (Tyco data sheet TFP1880).
FM Approved — Tyco Figure 71 Flange Adapter
Tyco Fire Products approval · data sheet TFP1880Tyco Figure 71 Flange Adapter. FM Approved (Tyco data sheet TFP1880).
