U-Bolt Outlet Threaded

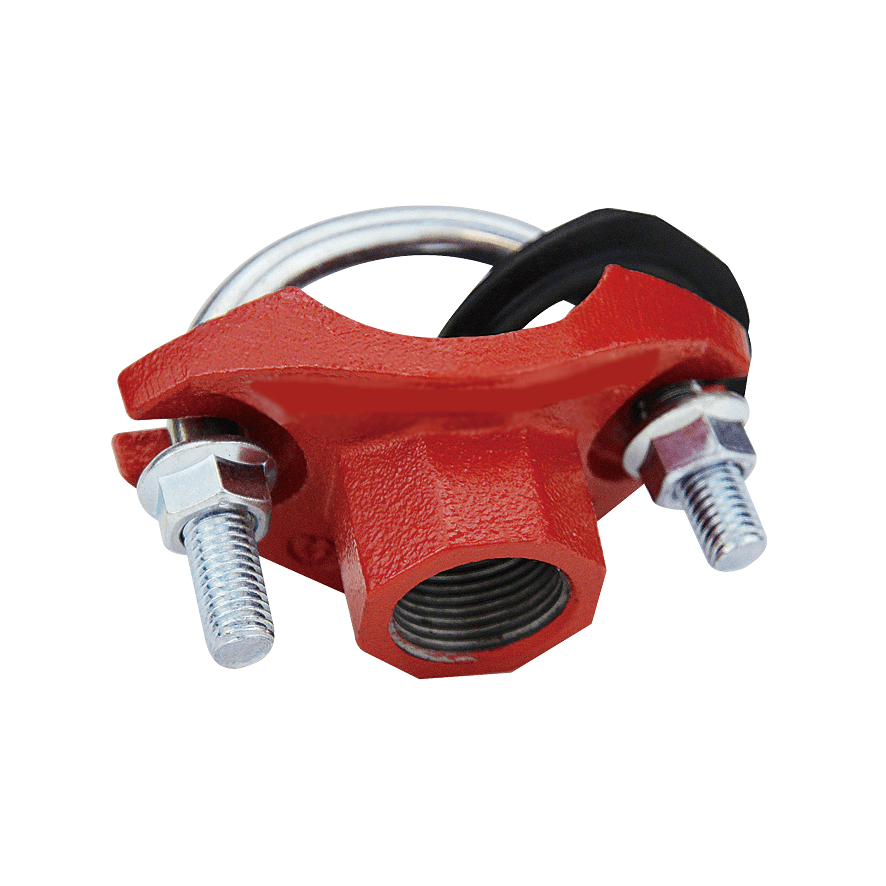

U-bolt threaded outlet for fast branch connections on existing grooved fire protection pipework.
Tyco make, supplied by De’s Technico. UL Listed under the Tyco Fire Products listing. FM Approved under the Tyco Fire Products approval.
At a glance
- Make
- Tyco
- Material
- Ductile iron, ASTM A536
- Type
- U-bolt clamp outlet
- Size range
- 25 to 200 mm
- Ends
- NPT or BSP threaded branch
Specification
| Body Material | Ductile Iron ASTM A536 |
|---|---|
| Clamp Type | U-bolt |
| Branch Outlet | NPT / BSP threaded |
| Size Range | 25mm to 200mm |
Construction & operation
A U-bolt outlet takes a small threaded branch off a pipe run. The outlet body sits over a hole cut in the pipe and is held by a U-bolt round the pipe, with a gasket sealing round the hole.
Used for light branch take-offs — gauges, test connections and small sprinkler branches — where a full mechanical tee is more than the duty needs.
Installation
- Cut the hole to the maker’s diameter and remove burrs and the cut coupon.
- Seat the outlet squarely over the hole, then tighten the U-bolt nuts evenly.
Approvals
UL Listed — Tyco Figure 40-5 Strap (U-Bolt Outlet)
Tyco Fire Products listing · data sheet TFP1720Figure 40-5 strap — U-bolt outlet with a threaded branch. UL and ULC Listed (Tyco data sheet TFP1720).
FM Approved — Tyco Figure 40-5 Strap (U-Bolt Outlet)
Tyco Fire Products approval · data sheet TFP1720Tyco Figure 40-5 Strap (U-Bolt Outlet). FM Approved (Tyco data sheet TFP1720).
