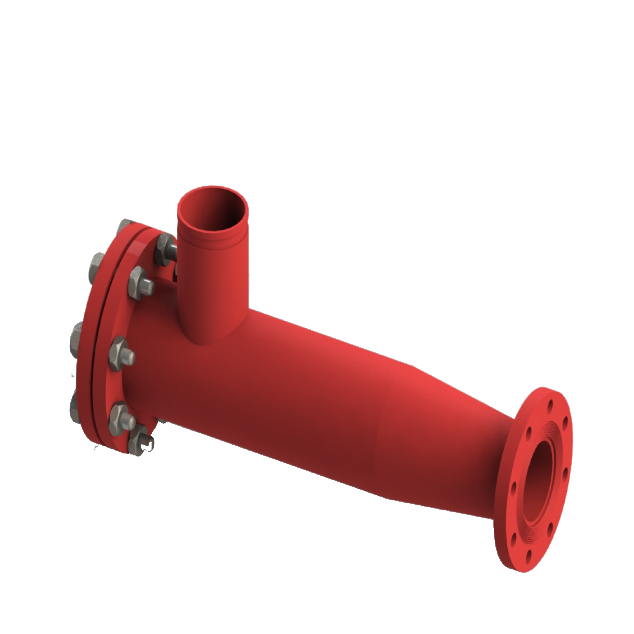

Fabricated Inline Strainer
Inline fabricated pipeline strainer for continuous protection of control valves and instrumentation.
At a glance
- Size range
- 15 to 150 mm
- Screen
- 40 to 100 mesh
- Open area ratio
- Minimum 6:1
- Body
- MS (IS 2062), SS 304 or SS 316
Specification
| Body Material | MS (IS 2062) / SS 304 / SS 316 |
|---|---|
| Size Range | 15mm to 150mm |
| Mesh / Perforation | 40 mesh to 100 mesh |
| Open Area Ratio | Minimum 6:1 |
Construction & operation
An inline strainer sits in the pipe run and catches debris in a screen before it reaches control valves, spray nozzles and instruments downstream. The screen is removed for cleaning through an access cover.
Choosing the screen
The screen opening should be smaller than the smallest orifice it protects, but no finer than it needs to be: an over-fine screen raises the pressure drop quickly and clogs.
Maintenance
- Watch the pressure drop across the strainer — a rising difference means the screen needs cleaning.
- Clean the screen after commissioning flushes and after every system discharge.
- Check the cover gasket each time the strainer is opened.
Where it is used
Part of these fire fighting solutions
Fire Hydrant SystemPlant-wide ring main, hydrants, monitors and hose boxes, sized to the site.
Fire Pump House and ReservoirPumps, drivers, suction reservoir and controls — the source everything else runs on.
Fire Water Spray SystemMedium and high velocity spray for vessels, transformers and process equipment.
Specified for these hazards
Cable Galleries / TrenchesLinear heat detection with water spray or clean agent.
Conveyor BeltsLinear detection and deluge along the belt run.
Pipeline ManifoldsSpray protection at valve and manifold congestion.
Pump & Compressor AreasSpray protection over rotating equipment and seal leakage points.
Sphere & BulletWater spray for cooling and exposure protection on pressurised storage.
Transformers & SwitchyardsHigh velocity water spray, with drainage and separation designed in.
Truck & Rail GantryFoam and water spray over loading bays, with detection at the arms.
